Quick Details

  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: Tongyu
  • Model Number: TY-PC-337
  • Insulation Material: XLPE
  • Type: Medium Voltage
  • Application: Industrial
  • Conductor Material: Copper
  • Jacket: PVC
  • Certificate: ISO9001/ISO14001 /OHSAS18001/CCC
  • Insulation: PVC Insulation
  • Core: Multi-core
  • Color: Requirement
  • Standard: BS IEC ASTM DIN
  • Conductor: Copper Aluminum
  • Packing: Wooden-steel Drum
  • Service: OEM ODM
  • Rated voltage: 1KV-15KV
  • Sheath: ZR-PVC

Packaging & Delivery

Packaging Details Packaging Details: Packed by coils or drums
Delivery Detail: 2 containers per 30 days
Delivery Time 25 days upon the payment
Product Description

Free Samples Medium Voltage XLPE Insulated copper core underground electrical power cable 95mm2 120mm2 180mm2 240mm2 360mm2

PVC/XLPE power cable is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable.

Standard

The products can be produced according to our factory specification which is equivalent to the standard IEC60502.The factory can also design and manufacture special power cable according to the other standards required by the customers.

Properties of  PVC Power Cable

1.The long-time permissible working temperature of cable conductive core is not more than 70 degrees.

2.During short circuit (max permanent time is not more than 5 seconds), the max temperature of cable conductor is not more than 165°C.
3.The difference level of laying cable is not restricted.When laying the cable,ambient temperature is not lower than 0°C.
4.They have good chemical stability,and properties of acid resistance,alkali resistance,salt resistance,oil resistance,solvent resistance and flame resistance.

5.The max temperature of the conductor of cable should less then 160 °C when short circuit. (less then 5 second)

6.Cable laying, bend radius≥10 times cable O. D.

7,Rated voltage: 0.6/1kV, 3.6/35kV.

Properties of XLPE Power Cable

1.The highest allowed operating temperature of conductor for long-term working is 90 degrees.

2.In short circuit (Max long term is no more than 5 seconds). The highest temperature for conductor is no more than 250 degrees.

3.The cable is laid without horizontal drop limit. The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated.

4.Excellent electrical performance, resistance to chemical corrosion.

5.Can stand advisable traction when laid.Can stand traction from Outside.Left low smoke halogen-free after burned.Retard the burning of the cable.

6.The max temperature of the conductor of cable should less then 160 °C when short circuit. (less then 5 second)

7.Cable laying, bend radius≥10 times cable O. D.

8,Rated voltage: 0.6/1kV, 3.6/35kV.

Description& Application of XLPE Cable

TYPE

NAME

Main Application

CU core

AL core





YJV/YJY

YJLV/YJLY

XLPE insulated,PVC/PE sheathed power cable

For laying indoor ,tunnel,canal and underground.Unable to bear external mechanical forces,but bear the traction force during laid

YJV22/YJV23

YJLV22/YJLV23

XLPE insulated,steel tape armored,PVC/PE sheathed power cable

For laying indoor ,tunnel,canal and underground.Able to bear external mechanical forces,but unable to bear large pulling force

YJV32/YJV33

YJLV32/YJLV33

XLPE insulated,thin steel wire armored,PVC/PE sheathed power cable

For laying in shaft,water underground will large difference of level.Able to bear external mechanical forces and moderate pulling force

YJV42/YJV43

YJLV42/YJLV43

XLPE insulated,thick steel wire armored,PVC/PE sheathed power cable

For laying in water and seabed.Able to bear positive pressure and pulling force



Rated Voltage,Core Numbers & Nominal Cross-section Area:

Uo/Um(kv)1st class0.6/11.8/33.6/6
No. of Core2nd class1/13/36/6
1 coresection area(mm2)1.5-80025/80025-800
2 coresection area(mm2)1.5-185//
3 coresection area(mm2)1.5-40025-40025-400
4 coresection area(mm2)2.5-40025-400/
5 coresection area(mm2)2.5-40025-400/

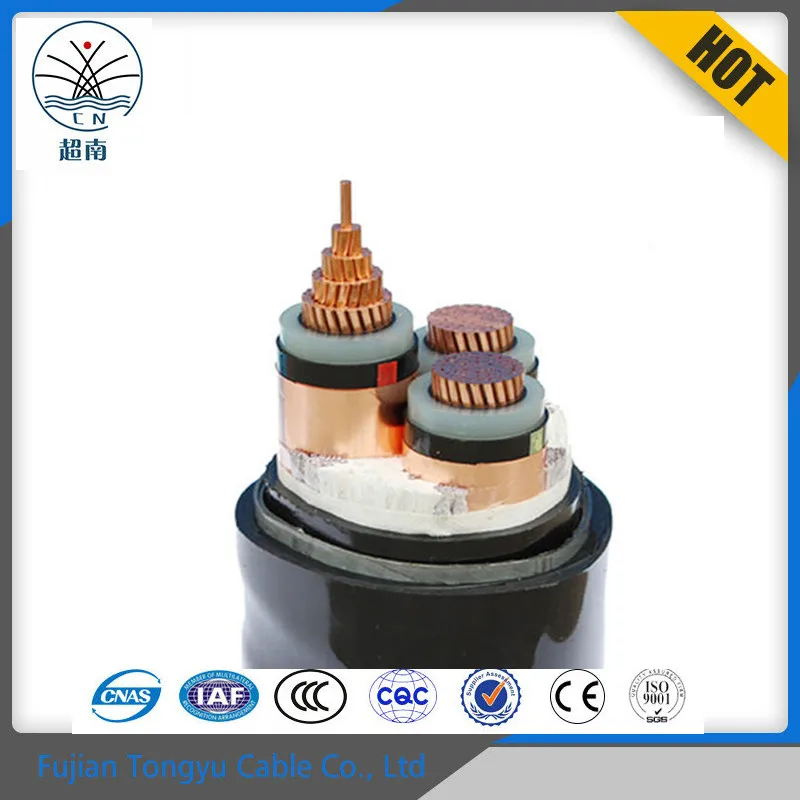

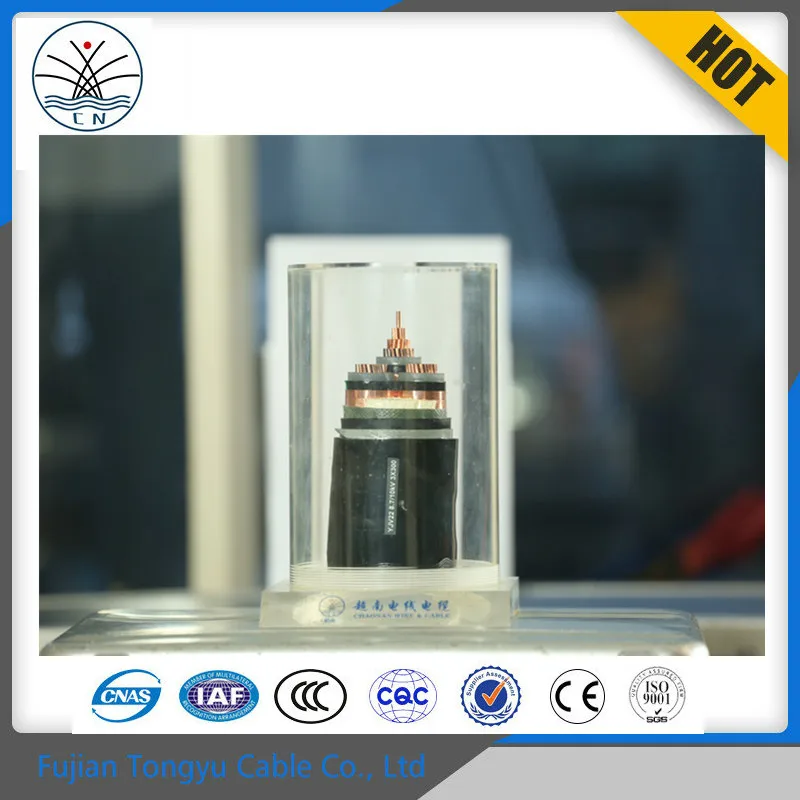

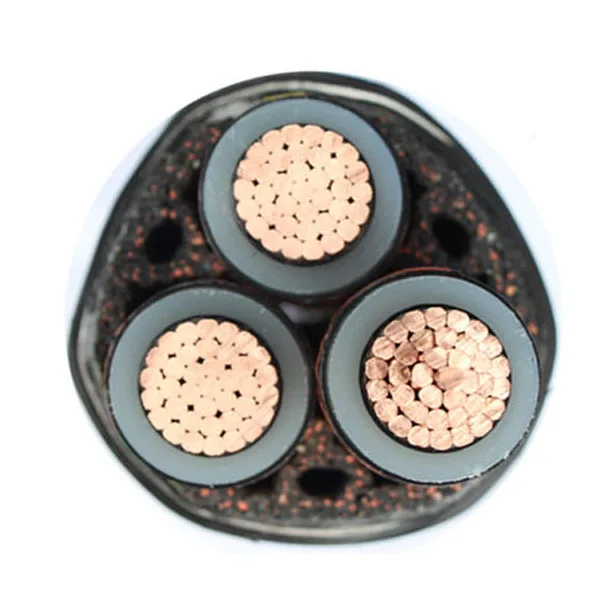

Product Photo
